Sinotruk Howo 4x2 6x4 Hydraulic System

Синотрук Хово 4×2 6×4 hydraulic system is equipped with various components to ensure efficient power steering. It includes the ZF8098 power steering gear, which provides smooth and responsive steering control. In the case of right-hand steering, a specific ZF8098 power steering gear is utilized.
The hydraulic system consists of essential parts such as the pressure oil pipe assembly, combination seal, пустые болты, прокладки, and fastening nuts. These components are responsible for the secure connection and sealing of the system. Elbow joints and tube connector nuts are used to join different sections of the hydraulic system, while hose connectors and hose clamps ensure leak-free connections.
Резиновые шланги, including those with fiber sandwich reinforcement, are crucial for transmitting hydraulic fluid between components. Hex head bolts and nuts, large and spring washers, angle brackets, and insulation sleeves are employed for the assembly and secure mounting of various elements, such as the steering rocker, steering bracket, and steering tank bracket.
The steering tank bracket assembly and steering tank provide support and house the hydraulic fluid reservoir. The steering pump, available in both right-hand and standard configurations, ensures the pressurized flow of hydraulic fluid. Combination seals, rotary pipe joint assemblies, уплотнительные шайбы, and high-pressure hoses contribute to a reliable and leak-free hydraulic system.
To guarantee precise and stable operation, the hydraulic system incorporates necessary components like hose clamps, forming hoses, and ring joints. These elements maintain the structural integrity and sealing of the system, обеспечение оптимальной производительности и долговечности.
Синотрук Хово 4×2 6×4 hydraulic system incorporates a comprehensive range of components that work together to deliver efficient and reliable power steering capabilities. Whether it’s the power steering gear, pressure oil pipe assembly, or rubber hoses, each component plays a vital role in ensuring seamless control and maneuverability.

Product Parameters of Sinotruk 4x2 6x4 Hydraulic System

ZF8098 power steering gear: This steering gear provides precise control and smooth operation, enhancing the overall maneuverability of the vehicle.
ZF8098 power steering gear (right-hand steering): Specifically designed for vehicles with right-hand steering, this steering gear ensures optimal performance for a comfortable driving experience.
Pressure oil pipe assembly: This assembly comprises high-quality pipes that deliver hydraulic pressure to the power steering system, enabling smooth power transmission.
Комбинированное уплотнение: The combination seal prevents any leakage of hydraulic fluid, maintaining the system’s integrity and preventing contamination.
Полый болт: Used for fastening and connecting various components securely, the hollow bolt contributes to the structural stability of the system.
Прокладка: The gasket provides a reliable seal between different parts of the hydraulic system, preventing fluid leakage and maintaining optimum pressure levels.
Закрепление ореха: Fastening nuts are used to secure and tighten connections, ensuring the stability and longevity of the hydraulic system.
Локтевой сустав: The elbow joint allows for flexible and convenient connections in areas where pipes need to change direction.
Tube connector nut: This nut ensures a secure and tight connection between different hydraulic tubes, предотвращение любой утечки жидкости.
Шланг разъем: The hose connector links different hoses to ensure efficient fluid flow and proper functioning of the power steering system.
Зажим шланга: Hose clamps securely hold the hoses in place, preventing any movement or disconnection, even in high-pressure situations.
Резиновый шланг: The rubber hose acts as a conduit for hydraulic fluid, transmitting pressure to the power steering system’s various components.
Резиновый шланг с сэндвичем из волокон: This reinforced rubber hose, with its fiber sandwich construction, provides increased durability and resistance to high pressure.
Болт с шестигранной головкой: Hex head bolts are used for fastening components together, ensuring a tight and secure connection within the hydraulic system.
Steering rocker: The steering rocker is a critical part of the power steering mechanism, translating the driver’s input into the desired steering motion.
Шестигранная гайка: Hex nuts are used in conjunction with bolts to secure and tighten connections, обеспечение стабильности и предотвращение расшатывания.
Большая шайба: The large washer spreads the load and pressure evenly across connections, reducing the risk of damage or failure.
Проволочная губка: Used in conjunction with nuts and bolts, the spring washer adds extra tension, preventing loosening due to vibration or motion.
Угловой кронштейн: The angle bracket provides added support and stability to specific components within the power steering system.
Insulation sleeve: The insulation sleeve keeps critical hydraulic components protected from heat, колебания температуры, and external damage.
One-end fixed single pipe clip: This pipe clip securely holds hydraulic pipes, preventing movement or disconnection in high-pressure environments.
Болт с шестигранной головкой: Hex head bolts are used for fastening components together, ensuring a tight and secure connection within the power steering system.
Шестигранная гайка: Hex nuts are used in conjunction with bolts to secure and tighten connections, обеспечение стабильности и предотвращение расшатывания.
Проволочная губка: The spring washer adds extra tension when used with nuts and bolts, preventing loosening due to vibration or motion.
Рулевой кронштейн: The steering bracket provides structural support and stability for specific components in the power steering system.
Рулевой кронштейн (правый): Designed specifically for vehicles with right-hand steering, this bracket ensures proper fit and functionality.
Болты с шестигранной головкой (прекрасные зубы): These fine-toothed hexagon head bolts provide a higher level of torque and resistance, maintaining secure connections.
Самоконтрящиеся гайки: Self-locking nuts feature a locking mechanism that prevents loosening, ensuring connections remain secure and reliable.
Кронштейн в сборе: The bracket assembly supports and secures various components within the power steering system, enhancing stability and longevity.
Болт с шестигранной головкой: Hex head bolts are used to fasten and secure the bracket assembly, ensuring proper positioning and alignment.
Шестигранная контргайка: The hexagon lock nut provides excellent resistance to loosening, maintaining the integrity of connections in high-vibration environments.
Орехи: Nuts are used to secure and tighten connections throughout the power steering system, обеспечение стабильности и предотвращение расшатывания.
Steering tank bracket assembly: This assembly supports and secures the steering tank, ensuring proper positioning and stability for optimal performance.
Кронштейн в сборе: The bracket assembly supports and secures various components within the power steering system, enhancing stability and longevity.
Steering tank: The steering tank stores hydraulic fluid for the power steering system, providing a constant supply for smooth operation.
Насос гидроусилителя (right-hand steering): Specifically designed for right-hand steering vehicles, this pump ensures efficient power steering functionality.
Насос гидроусилителя: The steering pump provides the necessary hydraulic pressure to the power steering system, enabling smooth and responsive steering.

Серийный	Имя	номер части
1	ZF8098 power steering gear	AZ9719470228
1	ZF8098 power steering gear	AZ9100470225
1	ZF8098 power steering gear (right hand рулевое управление)	WG9716470150
2	Pressure oil pipe assembly	AZ9719470029
2	Pressure oil pipe assembly	AZ9725470229
2	Pressure oil pipe assembly	AZ9716470050
3	Комбинированное уплотнение	Т071800
4	Полый болт	190003962632
5	Прокладка	252-3407054
6	Закрепление ореха	252-3407055
7	Локтевой сустав	252-3407056
8	Tube connector nut	190003883242
9	Шланг разъем	WG9100470078
10	Зажим шланга	190003989336
11	Резиновый шланг	WG9725470050
11	Резиновый шланг с сэндвичем из волокон	AZ9716470060
12	Болт с шестигранной головкой	Q151B2045TF2
13	Steering rocker	WG9719470020
13	Steering rocker	WG9725470298
13	Steering rocker	WG9716470020
15	Болт с шестигранной головкой	Q150B0630
16	Шестигранная гайка	Q340B06
17	Большая шайба	Q40206
18	Проволочная губка	Q40306
19	Угловой кронштейн	1397350169
20	Insulation sleeve	190003489292
21	One-end fixed single pipe clip	Q68225
22	Болт с шестигранной головкой	Q150B0620
23	Шестигранная гайка	Q340B06
24	Проволочная губка	Q40306
26	Рулевой кронштейн	AZ9731470020
26	Рулевой кронштейн	AZ9725470295
26	Рулевой кронштейн (верно)	AZ9725470238
27	Болты с шестигранной головкой (прекрасные зубы)	Q151B1660TF2
28	Самоконтрящиеся гайки	190003888627
29	Кронштейн в сборе	AZ9725470025
29	Кронштейн в сборе	AZ9725470020
30	Болт с шестигранной головкой	Q151B1020
31	Шестигранная контргайка	Q33210
32	Болт с шестигранной головкой	Q150B0835
33	Орехи	Q33208
34	Steering tank bracket assembly	AZ9100470040
34	Кронштейн в сборе	AZ9100470049
35	Steering tank	WG9719470033
36	Насос гидроусилителя (right hand steering)	WG9719470037
36	Насос гидроусилителя	WG9619470080
36	Насос гидроусилителя	WG9631470060
37	Комбинированное уплотнение	Т071800
38	Rotary pipe joint assembly	WG9100470110
39	Кольцевое соединение	WG9100470076
40	Уплотнительная шайба	190003098031
41	Полый болт	190003962651
42	шланг высокого давления	WG9100470107
42	шланг высокого давления	WG2032470140
42	шланг высокого давления	AZ9716470070
43	Зажим шланга	190003989301
44	Формирующий шланг	WG9725470120
44	Формирующий шланг	AZ9725470175
11а	Весенняя куртка	17017470015
36а	Прокладка	161800130047

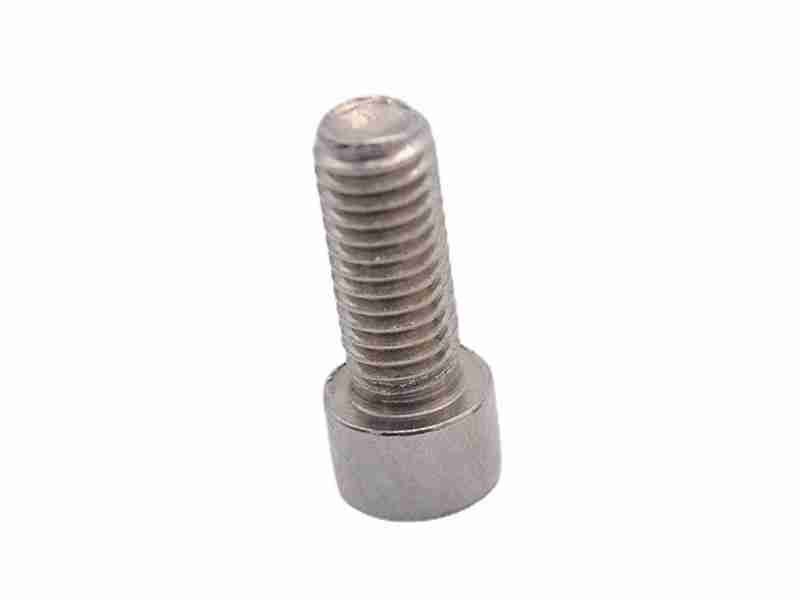

36б	Винты с головкой под торцевой ключ	Q218B1025
36с	Винты с головкой под торцевой ключ	Q218B1035
44а	Пружинный фиксатор	AZ9725470084
44б	jacket	AZ9123360300
